Input mapping in ONVIF

From Zenitel Wiki

Introduction

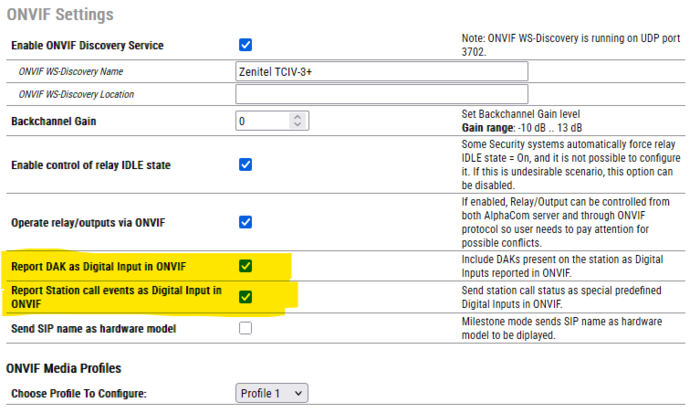

On the image below are the ONVIF settings that should be enabled before adding the device to the VMS

ONVIF settings



Input mapping

The order of inputs being reported, from first to last, is used to report the different inputs if enabled and available.

  • Call Active
  • Call Queued
  • Call Ringing
  • DAK 1....n
  • Inputs 1....n


ICX-Alphacom
Default Settings - No additional reporting to ONVIF is enabled
Device Call Events Call Button Events Inputs
TCIV+/TMIV+ (1 Call Button) Not enabled Not enabled Not supported
TCIV+ (2 Call Buttons) Not enabled Not enabled Not supported
TCIS/TMIS Not enabled Not supported Not supported
IP Desk Master V2 / IP Flush Master V2 / IP-CROR Not enabled Not supported Not supported
Only Call Events Enabled - Send station call status as predefined Digital Inputs in ONVIF
Device Call Events Call Button Events Inputs
TCIV+/TMIV+ (1 Call Button) Input 1: Call Active
Input 2: Call Queued
Input 3: Call Ringing		 Not enabled Not supported
TCIV+ (2 Call Buttons) Input 1: Call Active
Input 2: Call Queued
Input 3: Call Ringing		 Not enabled Not supported
TCIS/TMIS Input 1: Call Active
Input 2: Call Queued
Input 3: Call Ringing		 Not supported Not supported
IP Desk Master V2 / IP Flush Master V2 / IP-CROR Input 1: Call Active
Input 2: Call Queued
Input 3: Call Ringing		 Not supported Not supported
Only Call Button Events Enabled - Include DAKs as Digital Inputs in ONVIF
Device Call Events Call Button Events Inputs
TCIV+/TMIV+ (1 Call Button) Not enabled Input 1: Call Button 1 Not supported
TCIV+ (2 Call Buttons) Not enabled Input 1: Call Button 1
Input 2: Call Button 2		 Not supported
TCIS/TMIS Not enabled Not supported Not supported
IP Desk Master V2 / IP Flush Master V2 / IP-CROR Not enabled Not supported Not supported
Call Events and Call Button Events Enabled - Include DAKs and call status as Digital Inputs in ONVIF
Device Call Events Call Button Events Inputs
TCIV+/TMIV+ (1 Call Button) Input 1: Call Active
Input 2: Call Queued
Input 3: Call Ringing		 Input 4: Call Button 1 Not supported
TCIV+ (2 Call Buttons) Input 1: Call Active
Input 2: Call Queued
Input 3: Call Ringing		 Input 4: Call Button 1
Input 5: Call Button 2		 Not supported
TCIS/TMIS Input 1: Call Active
Input 2: Call Queued
Input 3: Call Ringing		 Not supported Not supported
IP Desk Master V2 / IP Flush Master V2 / IP-CROR Input 1: Call Active
Input 2: Call Queued
Input 3: Call Ringing		 Not supported Not supported
IC-Edge/SIP mode
Default Settings - No additional reporting to ONVIF
Device Call Events Call Button Events Inputs
TCIV+/TMIV+ (1 Call Button) Not enabled Not enabled
Input 1: I/O 1
Input 2: I/O 2
Input 3: I/O 3
Input 4: I/O 4
Input 5: I/O 5
Input 6: I/O 6
TCIV+ (2 Call Buttons) Not enabled Not enabled
Input 1: I/O 1
Input 2: I/O 2
Input 3: I/O 3
Input 4: I/O 4
Input 5: I/O 5
Input 6: I/O 6
TCIS/TMIS Not enabled Not supported
Input 1: I/O 1
Input 2: I/O 2
Input 3: I/O 3
Input 4: I/O 4
Input 5: I/O 5
Input 6: I/O 6
IP Desk Master V2 / IP Flush Master V2 / IP-CROR Not enabled Not supported Input 1: I/O 1
Input 2: I/O 2
Input 3: I/O 3
Only Call Events Enabled - Send station call status as Digital Inputs
Device Call Events Call Button Events Inputs
TCIV+/TMIV+ (1 Call Button) Input 1: Call Active
Input 2: Call Queued (only in ICX-Alphacom mode)
Input 3: Call Ringing		 Not enabled
Input 4: I/O 1
Input 5: I/O 2
Input 6: I/O 3
Input 7: I/O 4
Input 8: I/O 5
Input 9: I/O 6
TCIV+ (2 Call Buttons) Input 1: Call Active
Input 2: Call Queued (only in ICX-Alphacom mode)
Input 3: Call Ringing		 Not enabled
Input 4: I/O 1
Input 5: I/O 2
Input 6: I/O 3
Input 7: I/O 4
Input 8: I/O 5
Input 9: I/O 6
TCIS/TMIS Input 1: Call Active
Input 2: Call Queued (only in ICX-Alphacom mode)
Input 3: Call Ringing		 Not supported
Input 4: I/O 1
Input 5: I/O 2
Input 6: I/O 3
Input 7: I/O 4
Input 8: I/O 5
Input 9: I/O 6
IP Desk Master V2 / IP Flush Master V2 / IP-CROR Input 1: Call Active
Input 2: Call Queued (only in ICX-Alphacom mode)
Input 3: Call Ringing		 Not supported Input 4: I/O 1
Input 5: I/O 2
Input 6: I/O 3
Only Call Button Events Enabled - Include DAKs as Digital Inputs
Device Call Events Call Button Events Inputs
TCIV+/TMIV+ (1 Call Button) Not enabled Input 1: Call Button 1
Input 2: I/O 1
Input 3: I/O 2
Input 4: I/O 3
Input 5: I/O 4
Input 6: I/O 5
Input 7: I/O 6
TCIV+ (2 Call Buttons) Not enabled Input 1: Call Button 1
Input 2: Call Button 2
Input 3: I/O 1
Input 4: I/O 2
Input 5: I/O 3
Input 6: I/O 4
Input 7: I/O 5
Input 8: I/O 6
TCIS/TMIS Not enabled Not supported
Input 1: I/O 1
Input 2: I/O 2
Input 3: I/O 3
Input 4: I/O 4
Input 5: I/O 5
Input 6: I/O 6
IP Desk Master V2 / IP Flush Master V2 / IP-CROR Not enabled Not supported Input 1: I/O 1
Input 2: I/O 2
Input 3: I/O 3
Call Events and Call Button Events Enabled - Include DAKs and call status as Digital Inputs
Device Call Events Call Button Events Inputs
TCIV+/TMIV+ (1 Call Button) Input 1: Call Active
Input 2: Call Queued (only ICX-Alphacom)
Input 3: Call Ringing		 Input 4: Call Button 1
Input 5: I/O 1
Input 6: I/O 2
Input 7: I/O 3
Input 8: I/O 4
Input 9: I/O 5
Input 10: I/O 6
TCIV+ (2 Call Buttons) Input 1: Call Active
Input 2: Call Queued (only ICX-Alphacom)
Input 3: Call Ringing		 Input 4: Call Button 1
Input 5: Call Button 2
Input 6: I/O 1
Input 7: I/O 2
Input 8: I/O 3
Input 9: I/O 4
Input 10: I/O 5
Input 11: I/O 6
TCIS/TMIS Input 1: Call Active
Input 2: Call Queued (only ICX-Alphacom)
Input 3: Call Ringing		 Not supported
Input 4: I/O 1
Input 5: I/O 2
Input 6: I/O 3
Input 7: I/O 4
Input 8: I/O 5
Input 9: I/O 6
IP Desk Master V2 / IP Flush Master V2 / IP-CROR Input 1: Call Active
Input 2: Call Queued (only ICX-Alphacom)
Input 3: Call Ringing		 Not supported Input 4: I/O 1
Input 5: I/O 2
Input 6: I/O 3
